Aluminum Coil Al foil longitudinal Slitting Line Machine 0.15 -1.5 x 1600

The aluminum coil aluminum foil longitudinal slitting machine is specifically designed for the the uncoiling, longitudinal cutting, and winding processes of aluminum coils, especially the slitting of O-state aluminum coils (Al2Q3). The aluminum material is light, thin, and soft, with very high requirements for cutting accuracy and coiling accuracy. It is a high-precision slitting machine, reflecting the precision level of equipment manufacturing

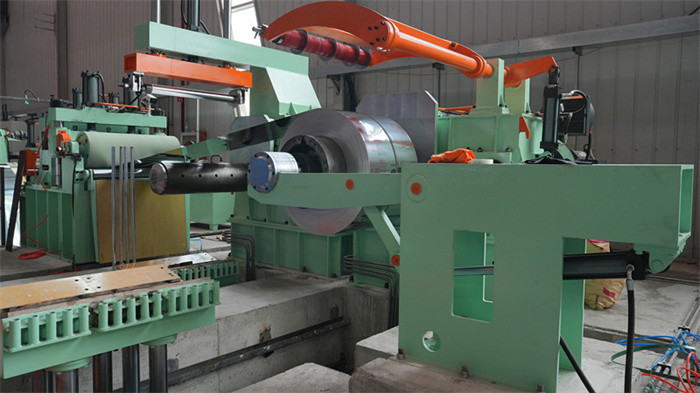

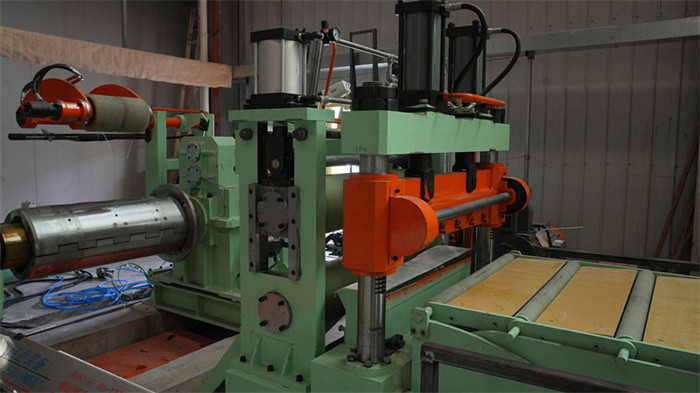

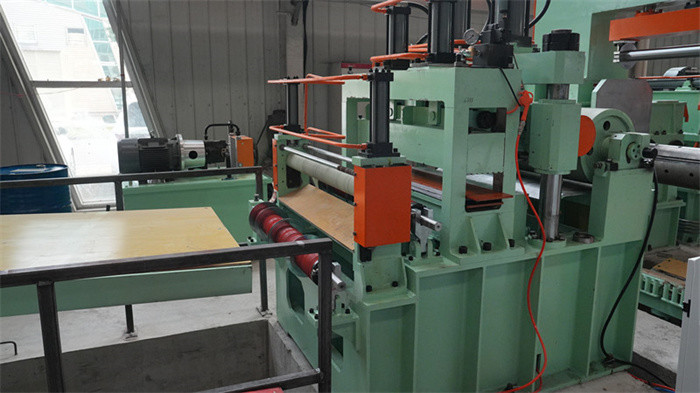

The entire slitting line includes a storage platform, a mobile uncoiler, a front storage pit, a mobile side guide, a disc slitter machine (double slitters available), an offline edge winding machine, No. 2 looper storage, pre separation, a tension station (plate+two roll type), a rear shearing machine, a measuring deflector roller, a press separation device, a recoiler, and a unloading car. Among them, the structural design and configuration level of each part must reach a high-precision level to achieve the requirements of high-speed precise cutting and winding

Equipment features:

1. This slitting line fully considers the surface protection of the sheet metal: the fan-shaped block of the uncoiler drum adopts serrated overlap, the press roller and transition roller are both wrapped rubber rollers, and the recoiler is seamless winding.

2. The entrance loop crossing bridge is a lifting type, including an arc-shaped feeding device, and ultrasonic detection achieves sufficient and flexible material storage.

3. Hydraulic expansion and contraction of the uncoiler mandrel, automatic centering, pneumatic braking, and active feeding into the loop storage.

4. The mobile side guide station includes material receiving, clamping, and shearing machines, which can not only connect the uncoiling head to achieve material feeding to the disc cutter, but also meet the active feeding into the storage pit.

5. Longitudinal slitting Slitter: disc blades, parallel cutting of upper and lower blade shafts, servo pressing of upper blade shaft by ball screw lifter, electronic ruler controlling lifting accuracy, anti axial movement and lifting clearance elimination device ensuring accuracy, with blade shaft axial movement within 0.005mm.

6. Offline edge scrap winding machine: The edge scrap freely falls into the pit and is pulled out of the pit to collect into rolls. There is a felt pressure plate on the transition guide table to prevent the tail from falling into the loop.

7. Strips separating mechanism: Arrange the position of the strips separating disc pieces according to the size of the strips, and ensure the strips are separated neatly through three times separating.

8. Tension table, in addition to plate tension, equipped with double roller tension, servo control tension, stable and adjustable tension with high accuracy.

9. Speed measuring deflection roller: The roller diameter is relatively large, and it undergoes speed measuring and turning strips to adapt to the winding angle and speed regulation requirements.

10. Press separating mechanism: The hydraulic guide column directly presses down, and the uniform pressure passively rises, ensuring neat and reliable separation of strips.

11. Seamless mandrel recoiler: Double jaw seamless drum, internal expansion block is an integrated sleeve, with good rigidity and high accuracy; Variable frequency constant tension control.

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
