Stainless Steel SUS304 316L Rotary Shear Fly Cut To Length Line 0.3-2 X 1000

The cut to length line is to make certain length of flat steel plates by leveling and cutting to length, composed of uncoiler, leveler, rotary shear, stacker, etc with auxiliary functions of coil loading, length measuring, film coating, sheets delivering and output,etc.

The working process is uncoiling, 19 roller 6hi leveling, length measuring, rotary fly shear cutting, the cut sheets go to the first stacker until number of stacking reaches preset number, then manually transfer to second stacker. While the sheets are going to second stacker, output the sheets on first lifting table by roll table and then first stacker return to work state. This way, one steel coil cutting can be continuously going on.

The working process is automatic, adopting PLC servo control and HMI.on touch screen, can set sheet sizes, number of pcs, calculate sheets weight, moreover, has functions: set feeding speed,set feeding length, set number of feeding, interchange between manual and auto, auto start, auto stop, pause, counter zero, fwd-rwd button, shear up-down, faults alarm, etc.

The chrome coated rollers, PU rollers, blower, etc play role in protecting sheet surface from being hurt.

Except for manual threading, all in auto working.

Parameters:

Composition:

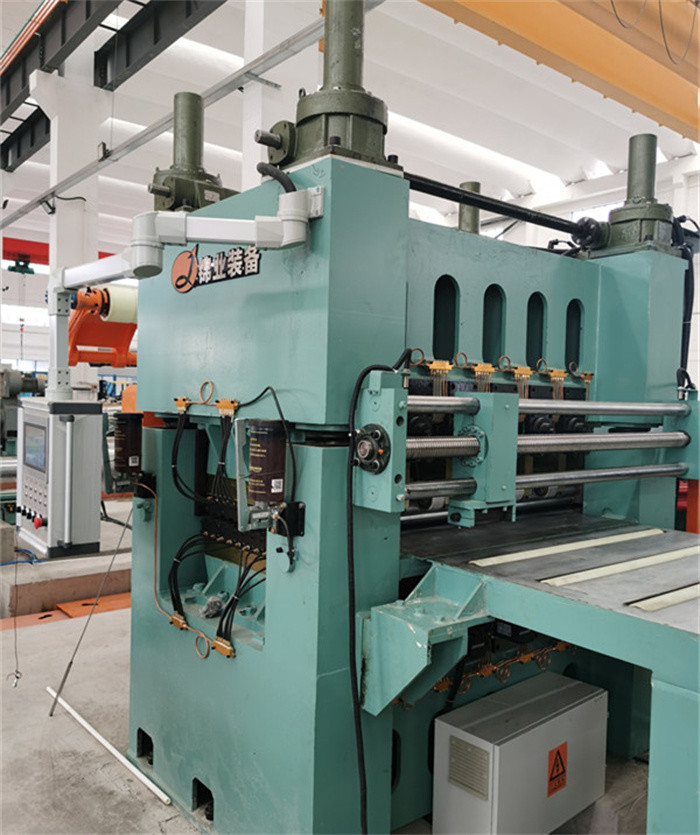

6High precision leveler:

• To level the steel plate and send the plate to afterward length measuring & cutting to length.
• Composed of 19 work rollers, 21 middle rollers , 10lines backup rollers, drive motor and transmission, 2 pinch rollers and machine frame, etc.
• The ends of work rollers are loaded in oil-impregnated bearings with automatic thin oil lubricating system.
• 5lines backup rollers press up onto lower work rollers, adjusted by motor & gear reducer drive and digital display on operator panel, 5lines backup rollers press down onto upper work rollers manually adjusted.
• AC motor and gearbox transmission connect with work rollers by universal joints.
• Upper pinch roller press down by pneumatic cylinders
• The lower rollers and frame are fixed, upper rollers are pressed down by AC motor reducer and warm screw rod, the opening between upper rollers and lower rollers is measured by grating rule and is digitally displayed on leveler.

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
