Automatic Steel Sheet Metal Slitting Line Hot sale Medium Gauge (1-6)x1600​

Customized options and Hot Sale Model:

We design and make metal slitting line as per customer requirements, their coming raw coil materials, finished baby strips specification, production capacity(how many tons per year), etc , the whole slitting line will be most proper for customer in machine dimensions and capacity. Meanwhile, metal sheet market has standards in specification, the raw materials and finished product will have common characteristics, this makes some models of slitting line popular, and become hot sale machine. (1-6) x 1600 model is one of the most hot sale slitting machines.

Our customers of (1-6) x 1600 slitting lines:

Medium gauge Slitting line Characters:

1. machines are strong and precise, machine structure will be proportionally stronger than thin gauge slitting line, meanwhile the cutting precision is the same level as thin sheet (+/-0.15mm)
2. the slitting speed is variable for different thickness slitting, proportional to sheet gauge, the thinner speed higher, the thicker speed lower, we give dual speed transmission ratio to realize the best efficiency.

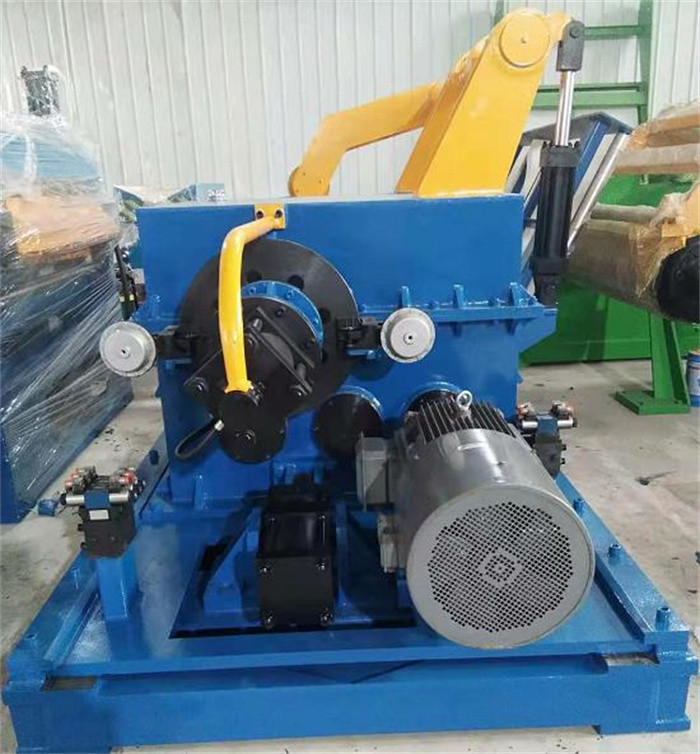

3. Uncoiler usually double mandrel type for heavy load metal coils 25T -30T.
4. Scrap winder is heavy load, each side one winder.
5. Medium sheet tension station either the same as thin sheets (felt pads) or heavy duty (rollers type), tension is adjustable.
6. Recoiler separator overarm type, parallel pressing strips down over recoil mandrel with coiling diameter increasing, with pressing pressure is adjustable.
7. Slitter can be fast change double slitters.
8. Dimensions of medium gauge slitting line: 30m length x 9m width

Composition:

Coil preparing saddle, Coil loading Car, Double Heads Uncoiler, Coil head Opener & peeler, Pinch feeder & 5rolls Pre-leveler, Shear, Pit accumulator 1 (transmission table), Side guide, Slitter (double heads optional), Scrap winder, Pit Accumulator 2, Tensioner and Pre-separator,deflector roller, recoiler with press separator, coil discharging car

Parameters

Layout:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
