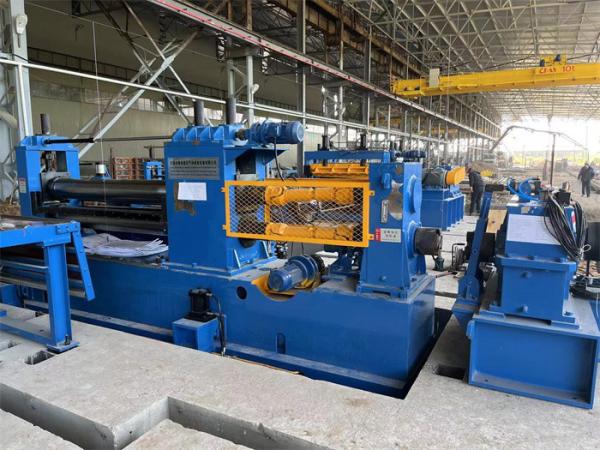

Medium Gauge Steel Coil Slitting Line (0.6-6 X 1600)

Medium gauge Steel Coil sheet slitting line mainly for coil steel sheets of 3 to 8mm thickness, Coil sheet material can be hot rolled (HR, HRC, HRS), cold rolled (CR, CRC, CRS), Galvanized sheet (GI) or Stainless Steel sheet (SUS, STS, SS) below 6mm. Coil sheet width range vary from 1250mm, 1500mm, 1600mm, 1800mm, 2000mm, it depends on customer coming coil materials.

We give customized options, customer tells their coming raw materials, finished strips specification, production capacity, precision tolerances, etc, we will provide individual complete proposal of whole slitting line, including uncoiling slitting & recoiling process, delivery time, dispatch and after sale support. You will feel our professional guide and support.

Characters:

1. Medium gauge Slitting line requires machines strong and precise, the sheet metal thickness two or three times of thin gauge sheet, this means machine structure will be proportionally strong, meanwhile the cutting precision is the same level as thin sheet (+/-0.10mm)
2. the slitting speed usually is fast (50-120m/min) for different thickness sheet slitting, generally proportional to sheet gauge, the thinner speed higher, the thicker speed lower.
3. Medium sheet tension station either the same as thin sheets, taking use of felt pads or rollers type, tension is adjustable.
4. Recoiler separator either overarm type or portal frame type, parallel pressing down over recoil mandrel with coiling diameter increasing, the pressing pressure is adjustable.
5. Uncoiler usually double mandrel type for heavy load metal coils.
6. Scrap winder is heavy load, each side one winder, either drum type or center support type.

Composition

Coil preparing saddle, Coil loading Car, Heavy Load Double Mandrel Uncoiler, Coil head Opener, Pinch feeder & 5 Rolls Pre-leveler, Shear, Pit accumulator 1, Entry guide, Slitter(twin slitters optional), Scrap winder, Pit Accumulator 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car, (turnstile)

Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
