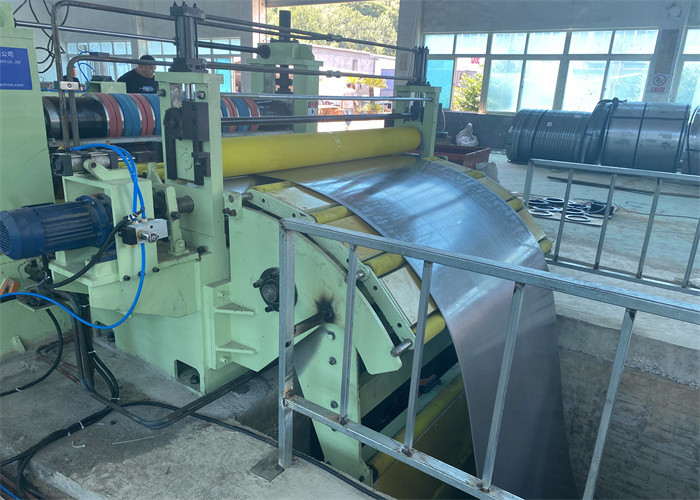

High Speed Precision Light Gauge Slitting Line (0.3-3 X 1250)

High speed Light Gauge sheet slitting line speed can be 120m/min, 150m/min, 200m/min in automatic slitting, to shorten down time effective mechanism is arranged, the time of loading, threading and unloading can be finished within 10minutes. In average 15T coil needs 30minutes, each day 8hours can produce 240T.

Continuous light gauge metal coil sheet slitting at high speed in high precision, each unit of slitting line should be elaborately designed, machined, assembled and installed to ensure smooth slitting process, meanwhile, consider special characteristics of thin metal strip material. We are rich experienced at design and make customized slitting lines of high speed high precision for thin gauge metal sheet slitting.

We have supplied slitting lines to Indonesia, Malaysia, India, Philippines, Vietnam, Saudi Arabia, UAE, Iraq, Jordan, Egypt, Algeria, Nigeria, Ghana, Costa Rica, Brazil, Venezuela, Colombia, USA, Kazakastan, Russia, Ukraine, etc.

Composition and layout

Coil preparing saddle, Coil loading Car, Uncoiler, Coil head Opener, Pinch feeder & Pre-leveler, Shear, Pit accumulator 1, Entry guide, Slitter, Scrap winder, Pit Accumulator 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car, (turnstile)

• Uncoiler: usually single mandrel cantilever type for coil load 15-20T
• Slitter is the heart equipment of the slitting line, double arbors for disc knives to install on, double slitters fast exchange is optional
• Slit tails press roller: installed on roll table over scrap winders, to press slit strips tails not fall into pit loop.
• Deburring press roller: before tensioning, press burrs on strips edges.
• Tensioning station: channels contact beams clamp wool felt to provide coiling tension, tensioning pressure is adjustable.
• Deflector encoding roller: deflect strips direction and measure line speed to control synchronization between slitter and recoiler
• Recoiler: seamless mandrel or normal segments are available, to wind up strips in order under press strips separating.

Parameters

Layout Drawing

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
