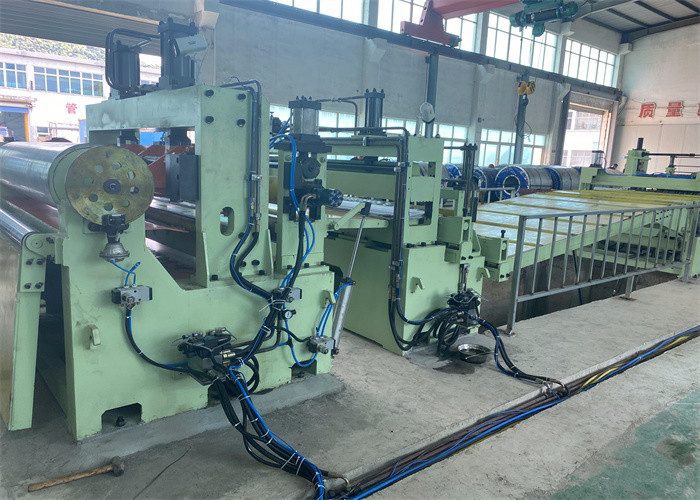

Light Gauge Precision Steel Sheet Slitting Line (0.3-3 X 1300)

Light Gauge Precision Steel Sheet Slitting Line is customized as per customers coming steel coil sheet dimensions & weight as well well finished baby coils specification and production. Slitting speed is optional 100m/min, 120m/min, 150m/min, 200m/min plus down time(the time of loading, threading and unloading) within 10minutes. average 15T coil needs 30minutes, each day 8hours can slit 240T.

Continuous light gauge steel coil sheet slitting at high speed in high precision, each unit of slitting line is elaborately designed, machined, assembled and installed to give smooth slitting process. We design and make customized slitting lines of high speed high precision for thin gauge steel sheet slitting for customers around the world (Malaysia, Philippines, Vietnam, Saudi Arabia, UAE, Iraq, Egypt, Algeria, Nigeria, Ghana, Costa Rica, Brazil, Venezuela, Colombia, USA, Kazakastan, Russia, Serabia, Ukraine, etc.)

Composition

Coil preparing saddle, Coil loading Car, Uncoiler, Coil head Opener, Pinch feeder & Pre-leveler, Shear, Pit accumulator 1, Entry guide, Slitter, Scrap winder, Pit Accumulator 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car, (turnstile)

• Uncoiler: single mandrel cantilever type for coil load 15-20T or double taper heads uncoiler for 20 -30T
• Pinch feeder and Preleveler: pinch feeding steel strip to slitter in Jog and feed strip into pit accumulator in automatic mode.
• Slitter is the heart of the slitting line, install disc knives, spacers, rubber rings or wooden strips to realize slitting, double slitters fast exchange is optional
• Slit tails press roller: installed on roll table over scrap winders, to press slit strips tails not fall into pit loop.
• Scrap winder: vertical type or horizontal type is available, wind up edge scraps.
• Strips separating: three times strips separating( twice before tension, once before recoiling).
• Tensioning station: channels slotted beams clamp wool felt to provide ajustable recoiling tension.
• Deflector encoding roller: deflect strips direction before recoiling and measure line speed to realize synchronization between slitter and recoiler

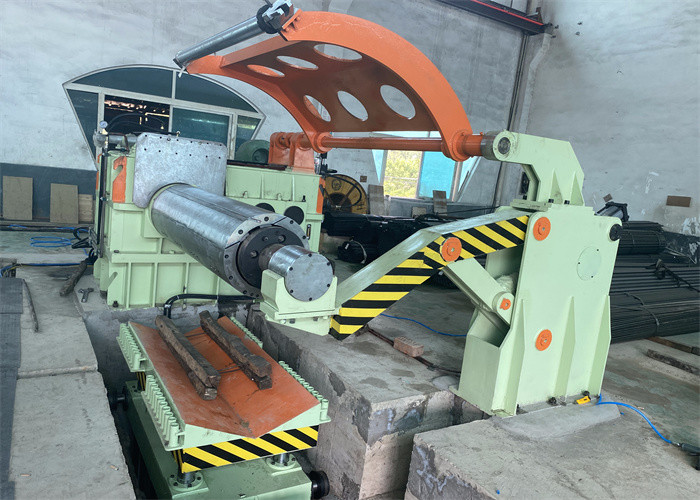

• Recoiler: seamless mandrel or normal segments mandrel are available, to wind up strips in order under press strips separating.

Parameters

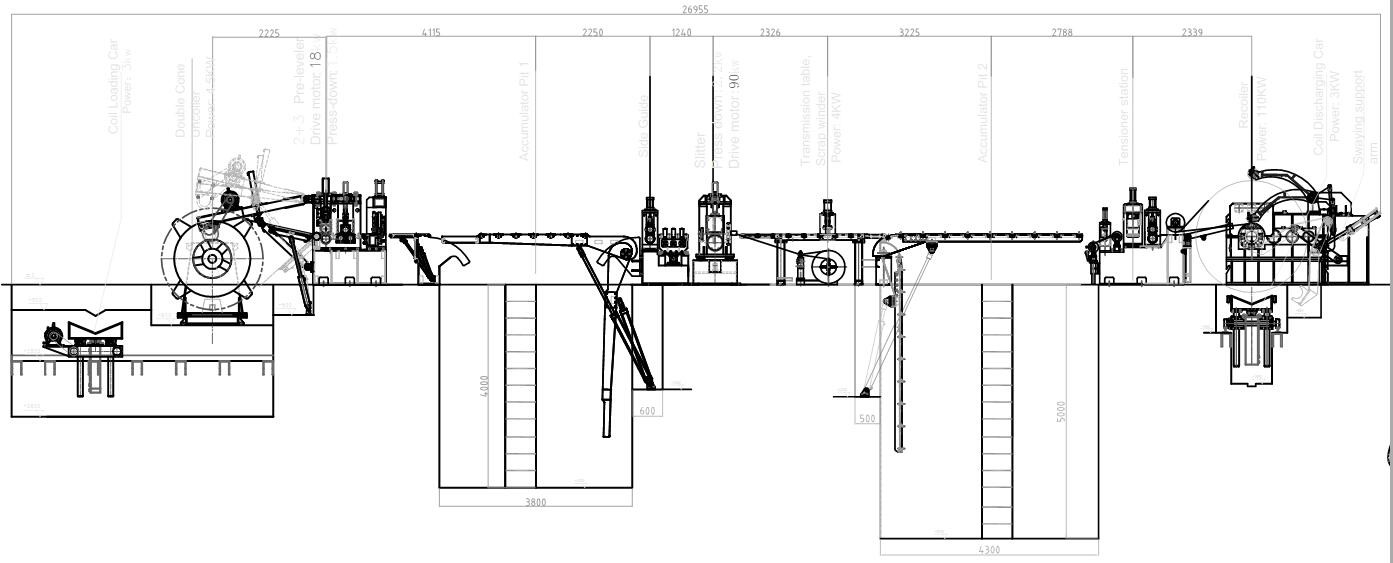

Layout Drawing

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
