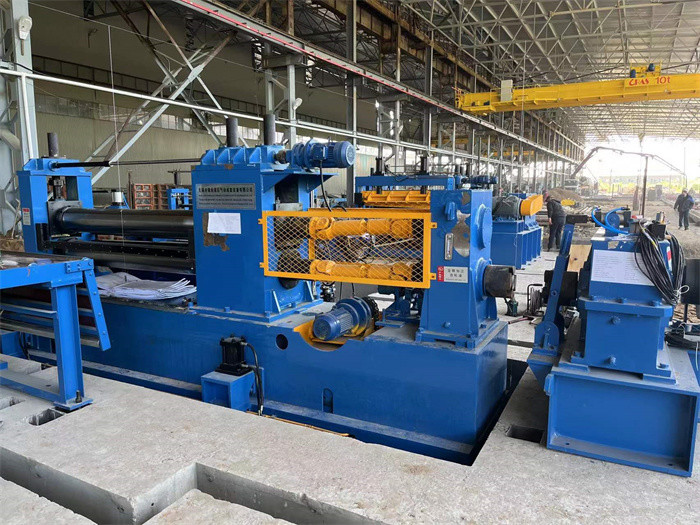

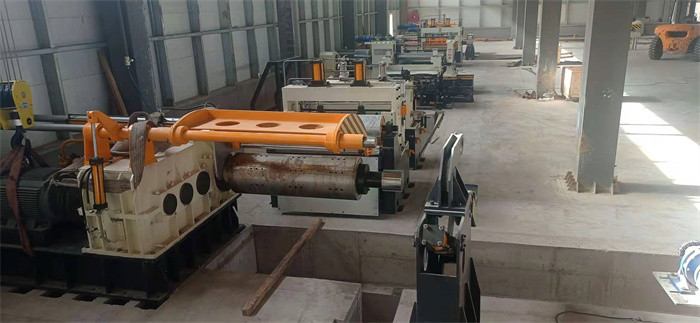

Super High Speed Steel Coil Slitting Line 3 x 1600 200mpm

Our new type advanced slitting line improves in many parts and gives higher speed, stability and precision.
1. Single mandrel decoiler: press one button on operator panel, centralizing to easily adjust coil on central line.
If partial coil is slit, the remaining coil sheet can return back to uncoiler
2.Pinch roller plays deflection guide role besides pinch feeding
3.Side guide unit: add 1 over 2 rollers, pneumatically press down upper roller to let steel strip flatly pass through.
4.Slitter:

• high precision tools Disc slitting knives: SKD-11, HRC 60-62, knife thickness tolerance within ±0.003mm.
• PU circled disc spacers: the same precision as knife as spacer and also as knife cushion.
• wood plates spacers are available for thin sheet slitting
• slitting tools arrangement program makes slitting accessories change easy.
• We also give option of double slitter heads automatic exchanging with each other on exchange base, one slitter is working online while workers can arrange knife tools on the other slitter, automatically check arranged knife clearance.

5. Scrap winder: vertical winding or horizontal winding as customer wants
6. Pre separating and tensioner: all separating shafts are the same and easily dismantled and installed.
tension provision is variable piston pump hydraulic system,two hydraulic cylinders on top give balance pressure.
7. Post shear and Deflector roller: post shear cut off irregular strips tails,making packing on recoiler easier.
Encoder on deflector roller track the slitting length and shows on touch screen.
8.Hydraulic piping adopts clamp lock type, solid structure and easy to install and dismantle.

Our principle of making machine:
1/ each slitting machine is customized
2/ keep improving each part of slitting line
3/ considering convenience of operation
4/ Ensure smooth running of whole slitting line
5/ Safety notes are marked.

Parameters:

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
