High Precision Heavy Gauge Sheet Metal Slitting Machines

Heavy Gauge metal slitting machine one side is strong machine;
1. Strong machine structure, rollers, shafts to bear big gauge sheet metal slitting load.
2. Big motor power to supply big torque and enough speed.
3. Big control drive cabinet to control big motors precisely.
Meanwhile the other side is high precision machine:
1. Our high precision machine design not for small gauge but also go with heavy gauge machine
2. We take use of good precise structure in each model metal slitting machine.
3. the precision is also from more convenient operation and preciser control system.

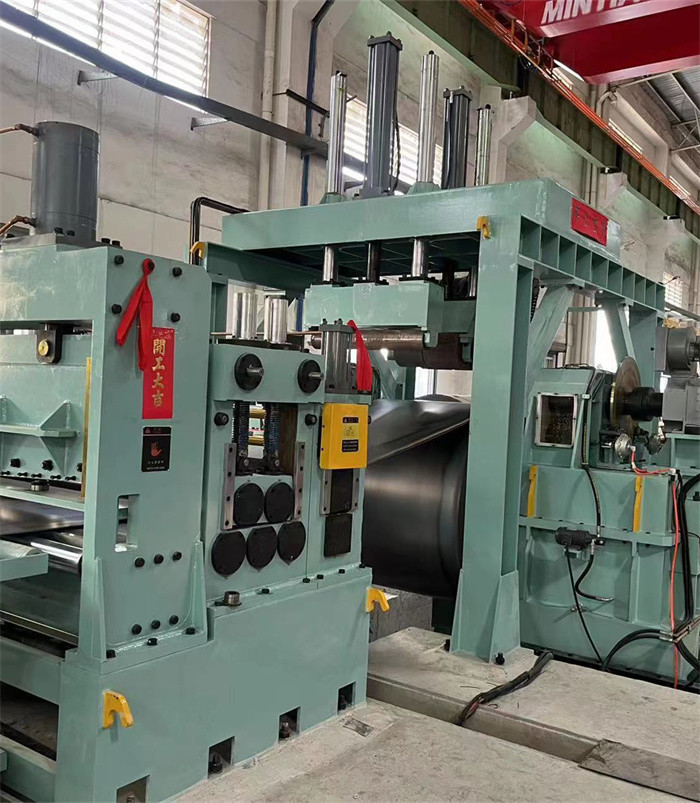

Our high precision steel coil slitting line improves in many parts, can give good stability and precision.
1.Pinch roller plays deflection guide role while pinch feeding, preleveler releases steel sheet internal stress.
2.Side guide unit: add 1 over 2 rollers, pneumatically press down upper roller, to guide steel strip from side and up-down direction before slitter.
3.Slitter:

• high precision tools Disc slitting knives: SKD-11, HRC 60-62, knife thickness tolerance within ±0.003mm
• double slitter heads automatic exchanging with each other on exchange base, one slitter is working online while workers can arrange knife tools on the other slitter, automatically check arranged knife clearance.
• Rotating turret for tools changing, two pairs of cantilever shafts, one pair for receiving old tools, the other pair for installing new tools, the tools arranging is offline, not bothering inline working.

4. Scrap winder: hydraulic horizontal winding, scrap baller & chopper opitonal
5. Pre separating and tensioner: all separating shafts are the same and easily dismantled and installed.
tension provision is variable piston pump hydraulic system,two hydraulic cylinders on top give balance pressure.
Tension is provided by wool felt and rollers type.
6. Post shear and Deflector roller: post shear cut off irregular strips tails,making packing on recoiler easier.
Encoder on deflector roller track the slitting length and shows on touch screen.

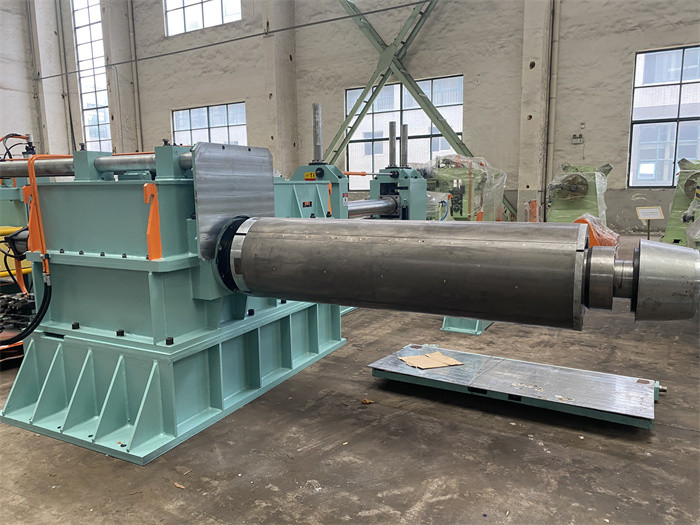

7. Recoiler: portal frame overarm separator to hold slit strips separately in neatness.

Parameters:

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
