High Precision Brass Copper Foil Mini Slitting Machine

copper foil slitting machine 0.08-0.5 x 400mm

Copper(bronze, Brass) and copper alloy Strips are widely used in industries of electronics, automobiles, electricity, home appliances, etc.to make parts like electric elements, light holder, battery cap, buttons, seals, etc.

Layout process:

Coil-loading→Single Mandrel uncoiling →Coil-end-press & shoveling→Double-roller pinch feeding, End-cutting → Hole Accumulator1 → Side Guide → Disc slitting→Scrap reeling→Hole Accumulator 2→Pre-separator, Tensioner, Shear, Deflector roller→Overarm Separator ,Recoiling→Coils-discharging → Hydraulic control → Electric control

Coming Material:

• Copper (C110/C120/C122/C144),
• Yellow Brass(C260/C268/C272),
• Red Brass (C230/C220/C210)
• Bronzes (C510/C511/C519/C521/C524)
• Strip thickness: 0.04mm to 0.5mm;
• Strip width: 100～400mm
• Inner diameter of coils: Φ508mm.
• Outer diameter of coils: Φ1000mm
• Max. coil weight: 1500Kg.

Finished product:

• Width of slit strips: 6mm - 100mm
• Burrs of slit strips: ≤0.03mm
• slit strips width tolerance: strip width ≤100mm, tolerance≤±0.03mm; strip width ＞100mm, ≤±0.05mm
• camber of slit strips:1.5mm/m

Composition and Parameters:

Coil loading car
Uncoiler(508mm x 500mm, 7.5KW)
Pit loop1 including photoelectric sensor
entry guide, Slitter, edge scrap winder(7.5KW)
Pit loop2
tensioner

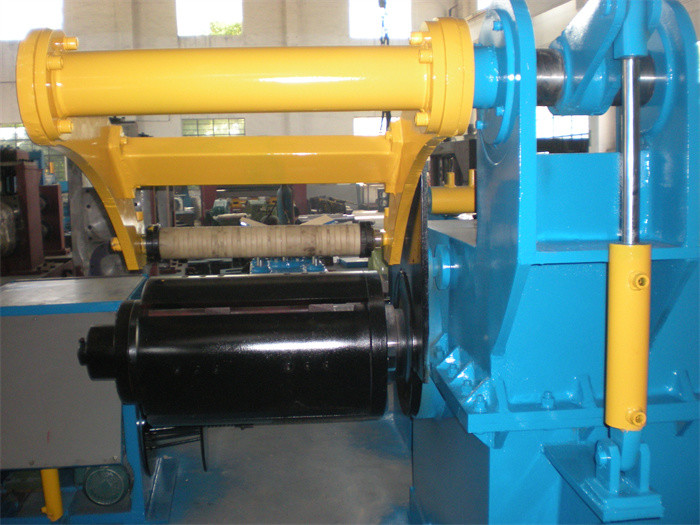

Recoiler (11KW, 200mm, 300mm)
coils discharging car
Electric control system
Hydraulic system(5.5KW)
Pneumatic system

Configuration:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
