Heavy Duty Steel Slitting Line Machine For High Tensile Coil Sheet

High carbon steel coils are high tensile steel, very hard and high elasticity, used for making tools, knife, springs, etc. steel grade: steel grade: ASTM1050,1075,1080, 1085, 1090, 1095, C67S tensile strength range around 750Mpa-1000Mpa

High tensile strength steel sheets in coils are high quality steel, requiring high quality slitting.
We make and supply high tensile steel coil slitting machines to domestic customers in Shanghai and Suzhou and foreign customer in USA.

We know well customers requirements of hot rolled coils slitting lines and what configuration machines suit market. We have supplied hundreds of sets HR slitting machines to customers around the world, welcome your inquiries.

Composition and Characteristics

1.Very Strong decoiler and coil opening press roller and peeler shoveling plate, to hold steel coil steadily in time of steel strip being pulled out, and send strip head into pinch feeding equipment.
2.Slitter: slitter stands, shafts, knives are bigger and stronger than normal slitter. Drive motor power is about 50% more than normal model slitter.
3.Edge scrap winder adopts torque type tension, stronger and efficient.
4.Accumulator pit loop is longer and deep enough to make sure steel strip accumulating.
5.Tension provision unit own both roller and wool felt to provide adjustable stable tension for recoiling.
6.Recoiler has portal frame type overarm separator, from top to press separating strips.
7.Slitting speed usually are limited within 80m/min.
8.Slitting knives will be special material suitable for hard steel slitting.
9.Hydraulic system, such as hydraulic cylinders, valves, should be robust and more durable.

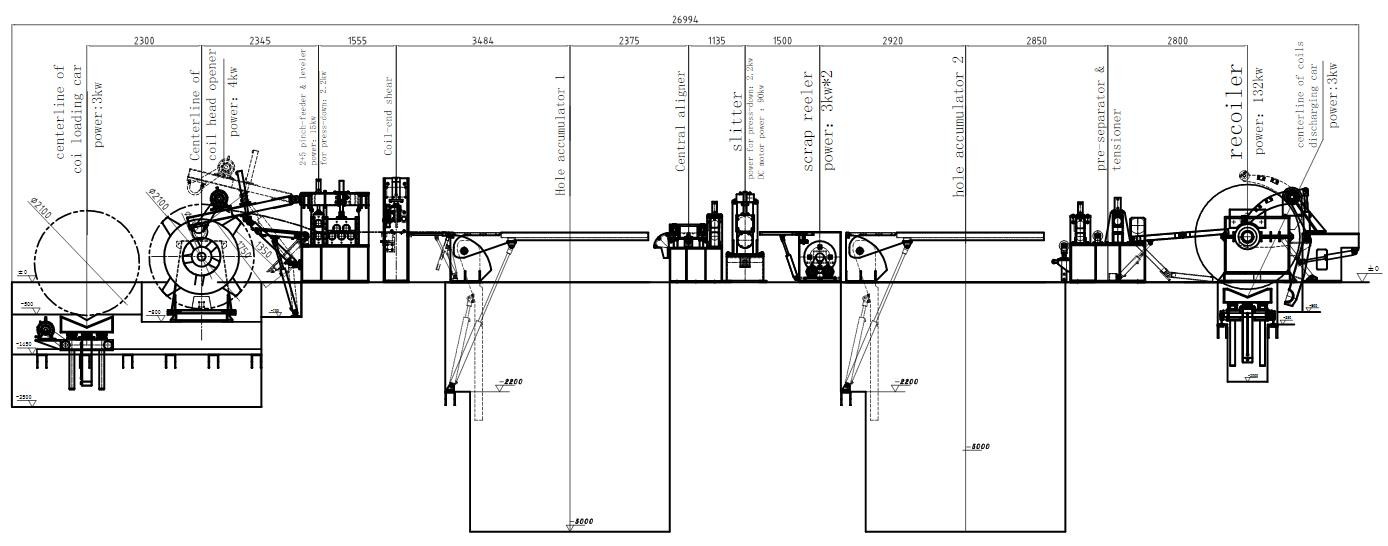

Layout Process:

Coil preparing saddle, Coil loading Car, Uncoiler with press roller, Coil head peeler, Pinch feeder & 5 roller Pre-leveler, Shear, Pit loop 1, Side guide, Slitter, Scrap winder, Pit loop 2, Tensioner and Pre-separator, post shear and deflector roller, recoiler with overarm separator, coil discharging car

Parameters:

Configuration:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
