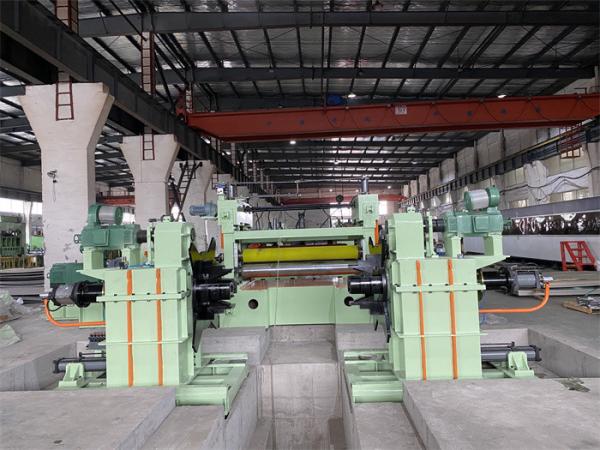

Stainless Steel Sheet Cut To Length Machine

Stainless steel sheet is high quality steel, requires high precision high quality cut to length line machine
Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, stainless steel sheet strength Yield strength ≤500Mpa Tensile strength≤800Mpa

Stainless Steel Sheet Specification:

Characters:

1. STS coil cut to length line must be high precision and robust.
2. Uncoiling stage: Include Coil storing saddle covered with PU rubber plate, Coil loading car with PU rubber plate,Single mandrel or double mandrel uncoiler, Coil head snubber roller, peeler shoveling plate
3. High precision Leveler: 4Hi or 6Hi. 4Hi is two layers work rollers and two layers backup rollers, 6Hi plus two layers middle rollers between work rollers and backup rollers. Leveler drive is DC or AC motor, reducing gearbox, distribution gearbox and universal joints.
4. Pit loop Or Transmission roll table. Rubber coated rollers to contact stainless steel sheet.
5. Servo cutting to length for thickness below 6mm and above 6mm usually rotary encoder(and/or Film Laminating)
6. Sheet Discharging stage:Include Belt Conveyor,pneumatic sheet receiving arms,X lifting table, exit car or roll table

heavy STS coil cut to length

Market:

• Stainless steel sheet cut to length line is becoming more percentage with the market requiring more stainless steel sheets, the SS sheet surface is bright, must be nicely protected in the uncoiling, leveling and cutting process.
• Fast cutting to length is needed because customers want enough production within certain time and land area. Thus, high speed cutting line, either flying shear or stop shear, is popular.
• Sheets stacking must be fast and in order, receive one sheet,drop down and push it neatly.
• Automation system is there in electric control, big touch screen and PLC program.

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.
