Thin Sheet Metal Cut To Length Line Machine With Edge Trimmer

Metal coil sheet cutting to length line is one of our main machine products, We manufacture metal sheet cut to length line machines for 15years, have supplied cut to length line to Malaysia, KSA, UAE, Nigeria, Algeria, USA, Russia, Ethiopia, Egypt, etc, about 30 countries,

Coil sheets can be hot rolled, cold rolled, galvanized steel sheets, stainless steel sheet, aluminum sheets, light gauge sheet cut to length line has fine leveling and fast cutting. Sheet flatness +/-1mm per square meter, fast stop cutting 2m x 28pcs/min.

Continuous running of leveler, servo length feeding and fast pneumatic shear ensure high speed and high precision working, stacking speed follows up the coming cut sheets and stack each sheet fast one by one, for a 2mm x 1250 x 15T coil, it takes 20minutes to cut, about 40minutes one coil.

Layout

Two sets coil preparing saddle, single mandrel uncoiler with back tension, coil head press and peeler, 4 high leveler, pit loop, central guide, servo length fixing with filming, fast shear, delivery belt table, one or two sets stacker, output cars or roll tables.

Composition

1. Coil saddle, store one or two coils for standby, load 20T
2. Coil loading car. load coil onto uncoiler mandrel, up-down lifting and fwd-bwd walking.
3. Single mandrel uncoiler: hydraulic expansion mandrel for standard Ф508mm, back tension motor is installed for stable uncoiling and leveling, centralizing uncoiler base to ensure coil center on ceterline.

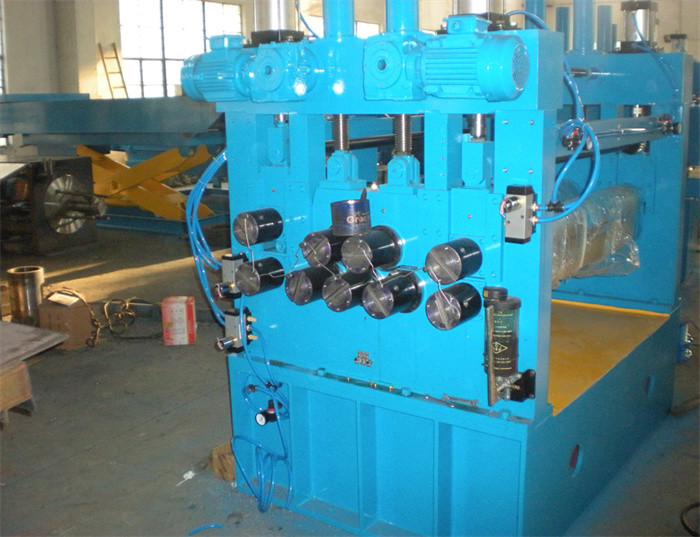

4. 2+15 Roller Leveler: 4Hi, 4 rows backup rollers, 75KW DC.
5. 7Servo Length feeding: Servo length measuring(2+5+2 rollers driven by servo motor and controller)
6. Pneumatic Fast Stop Shear: crank shaft cutting from down to up, lower blade v shape.
7. Belt Conveyor: convey finished sheets to stacker
8. Stacker: stacking load 5T.
9. Sheets Car: deliver sheets out, then packing. can be two cars, one working and the other waiting.

Parameters:

Precise Making:

Photos:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
