200mpm High Speed Steel Coil Slitting Line With Floor Cradle Coil Car

Our high speed steel coil slitting line improves in many parts, can give good stability and precision.
1. Single mandrel decoiler: press one button on operator panel, centralizing to easily adjust coil on central line.
mandrel is interlace teeth segments, good for thin sheet coil inside.
2.Pinch roller plays deflection guide role while pinch feeding, preleveler releases steel sheet internal stress.
3.Side guide unit: add 1 over 2 rollers, pneumatically press down upper roller, to guide steel strip from side and up-down direction before slitter.

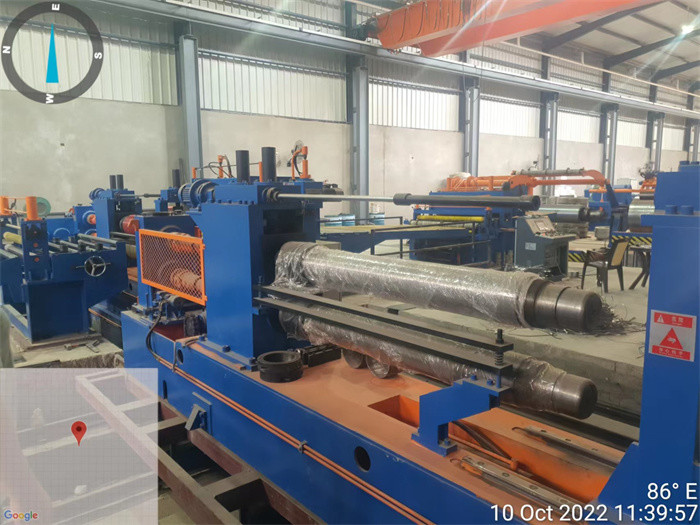

4.Slitter:

• high precision tools Disc slitting knives: SKD-11, HRC 60-62, knife thickness tolerance within ±0.003mm.
• PU circled disc spacers: the same precision as knife as spacer and also as knife cushion.
• wood plates cushions to guide steel strips are available for thin sheet slitting
• double slitter heads automatic exchanging with each other on exchange base, one slitter is working online while workers can arrange knife tools on the other slitter, automatically check arranged knife clearance.
• Rotating turret for tools changing, two pairs of cantilever shafts, one pair for receiving old tools, the other pair for installing new tools, the tools arranging is offline, not bothering inline working.

5. Scrap winder: vertical winding or horizontal winding, scrap baller & chopper, optional. for high speed thin sheet usually vertical type.
6. Pre separating and tensioner: all separating shafts are the same and easily dismantled and installed.
tension provision is variable piston pump hydraulic system,two hydraulic cylinders on top give balance pressure.
7. Post shear and Deflector roller: post shear cut off irregular strips tails,making packing on recoiler easier.
Encoder on deflector roller track the slitting length and shows on touch screen.
8.Unloading car can be floor cradle type, with over press arm to keep strips separating, the new steel strips winding can be started while coil unloading car travels slit baby coils out.


Parameters:

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
