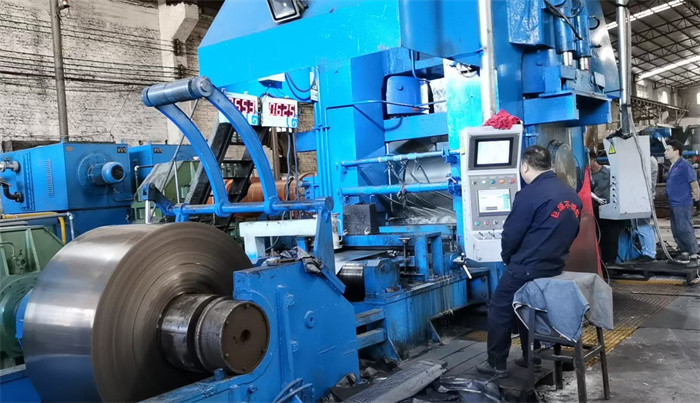

High Quality Special Steel Cold Rolling Mill For High Carbon Steel

Good quality steel is better than plain carbon steel in properties of mechanic and processing

Including carbon steel structural steel, alloy steel, tool steel, spring steel, bearing steel, gear steel, etc.

Most good quality steel is medium high carbon steel, ASTM 1095,1075,1065,1050,yield strength 385-1080Mpa

The cold rolling process accompanied with interim Spheroidizing annealing:

• cold rolling each pass up to 20%, each time up to 50%
• two or three times annealing in bell.
• final skin pass rolling

Parameters:

Control system:

Recoilers and Rolling mill DC motors are controlled by 6RA80 series DC driver, main channel adopt speed and electric current double closed loop structure, with given integrator, current pre-control functions, magnet excitation adopts potential and current double closed-loop structure.

S00 software package for recoiler DC driver can achieve tension control, recoiling diameter calculation and dynamic compensation.

The DC control system has good and reliable performance as well as best self-priority, motoring, self-diagnose, fast network functions.

The main mill control is speed control system, recoiler is speed control during threading and tension control during rolling(more exactly indirect tension control).

• Main funtions
• Main mill:
• —Manually forward or reverse rotate unitedly or singely
• —Stepless smooth speed control
• —Constant speed acceleration start or stop, speed limit and over speed protection
• —emergency stop
• —Automatic weak magnet
• Recoilers:
• —Manually forward or reverse rotate unitedly or singly
• —Stepless smooth speed control
• —Constant speed acceleration start or stop, speed limit and over speed protection
• —emergency stop
• —Automatic weak magnet
• —to start tension, the given tension can be smooth preset by computer or manual preset
• —Recoiling diameter calculation and memory
• —Compensation of inertia moment
• —Compensation of Non-load rotation loss

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
