Carbon Steel Cut To Length Line for Hot Rolled HR, HRC, HRS​

Thick gauge hot rolled mild steel coils are most common for cutting to length process, applied as structural body of construction, ship, machinery, automobiles, etc.

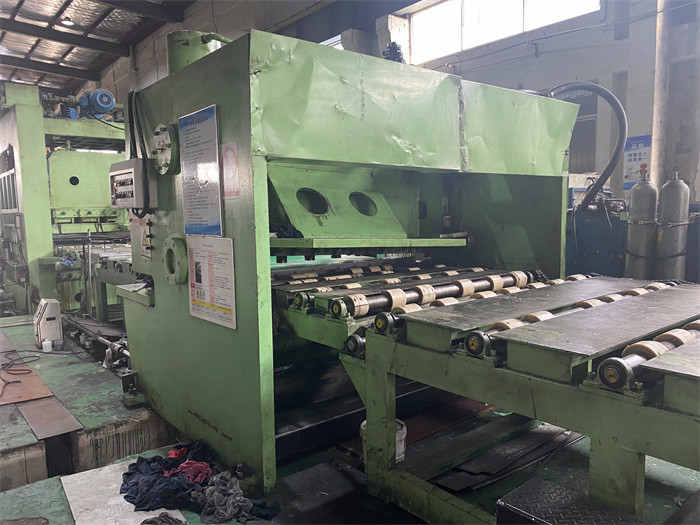

Leveler is the basic machine of steel coil cut to length line, the quality of finished plates largely depend on the performance of leveling machine. For thick HRC mild steel plates, the main leveler is heavy duty very strong.

For 4-16 x 2000 steel plates, the roller diameter 210mm, 11 rollers are arranged with 5 over 6 rollers in interlaced wave, motor power around 150KW, speed up to 20m/min.

For thick HRC strong steel plates, twice leveling are very necessary and effective, one pre-leveler and main leveler. Pre-leveler is to handle coiling bends and main leveler is to level sheets to be flat.Preleveler can be hydraulic three rollers (one over two) or Motor drive five rollers(two over three), considering hard HRC steel coil, five rollers leveler is more effective. We supply the heavy HRC steel leveling cut to length lines to Attieh Steel in Saudia Arabia, Modern Metal in Jordan, 12 x 2100 Saba Steel in Nigeria

One leveler can level sheet gauge of certain range, such as 0.3-3mm, 1.5-6mm, 4-16mm, when a customer wants to make wide thickness range sheets, can consider to put two levelers sequentially on the line, one leveler focus on leveling bigger thickness, while the second leveler for smaller thickness(e.g. 2-12mm is divided to 2 -4mm, 3-12mm).

The cutting shear is normal hydraulic shear with encoding length fix. With length measuring roller feedback, the shear will cut precisely by PLC control.

Parameters:

Composition:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
