High Precision Automatic Rever​sible Cold Rolling Mill Machine For Metal Strips

Automatic Reversible Cold Rolling Mill is different from tandem continuous rolling mill, the metal strip forward or reverse run through rolling mill to reduce strip thickness by number of rolling passes, to-and-fro passes can be up to 5 or 6 until the metal thickness reaches up to finished gauge.

Reversible cold rolling mill is suitable for

• 1) high precision thin metal strip rolling
• 2) Annual prodution of Cold rolled metal product is not highly required.

Features of reversible rolling mill:

1. Metal coil strip materials can be carbon steel, stainless steel, copper, bronze, aluminum, nickle, silver, titanium alloy, etc.
2. The reversible rolling mill can be 2 high, 4 high, 6 high, 8 high, 12 high, 18hi, 20 high
3. Reversible cold rolling requires to and fro rolling in stable, uniform and precise status, the manufacturing precison of rolling mill must be good.
4. Thickness reducing control of reversible mill can be mechanic screw down or hydraulic AGC screw down, required by application, speed and precision of cold rolled metal
5. Two coilers sit each side of the reversible rolling mill while reducing thickness of metal coil strip, to provide coiling tension and wind metal strip up.
6. The drive motor of reversible mill rotate FWD or REV, automatically controlled by motor controller and PLC

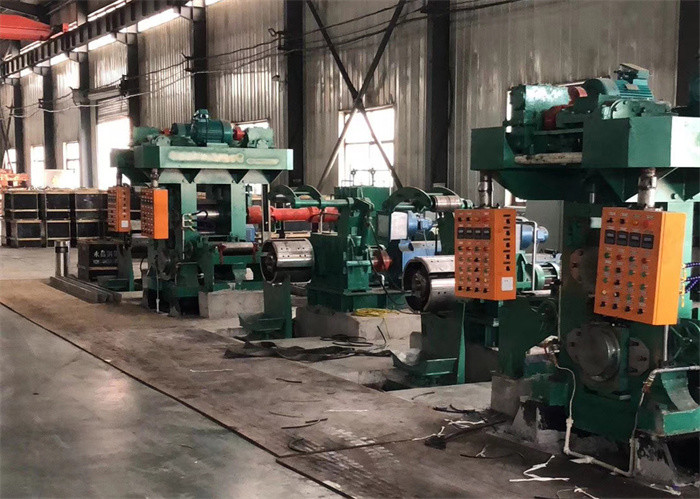

700 four roller (4 high) reversible cold rolling mill.

Work process:

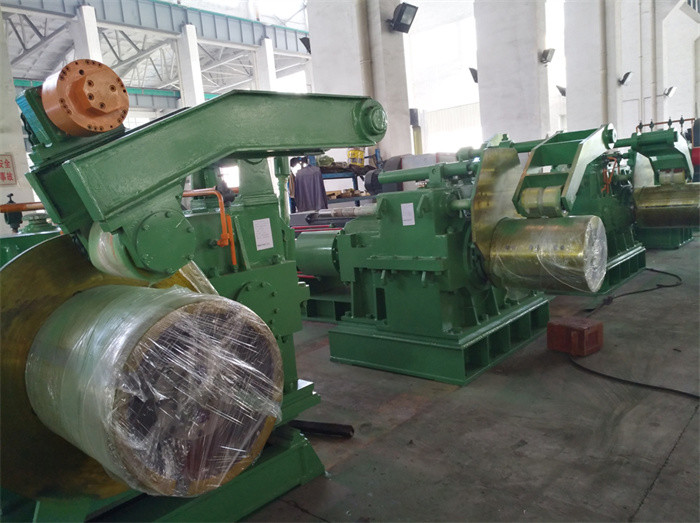

10T Uncoiler, pinch feeder and 5 roller straightener, 1st Recoiler, 4 Hi Reversible Mill, 2nd Recoiler.

Configuration:

Configuration

1. DC motors are controlled by 6RA80 series digital DC driver,the whole line is controlled by Siemens PLC.

2. Mechanical screw press-down of rolling mill

3. Deviation adjusting of press-down

4. Safety protection such as overload protection, emergency stop in electric control system.

5. Automatic coiling tension setting and automatic constant tension control.

6. Drive work rollers, universal joints as coupling

7. Dry grease lubrication for bearing seats of rollers, press-down and universal joints

8. Automatic PLC control for whole process such as interlink of rolling process and fault alarms.

9. The rolling mill has functions: pre-setting of rolling process parameters, the inspection,display and alarm of processing parameters and machine critical parameters.

10.Two recoilers and 4hi mill realize Reversible rolling

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.
