Galvalized Steel Black Steel ERW Welded Pipe Mill Line (HG50)
Configuration of pipe mill line
Sepcification of HG 50 Pipe Production Line:
| Raw material | |
| low carbon steel, low alloy steel, HR or CR. Tensile strength: σb≤600Mpa Yield point: σs≤315MPa 0.8 - 3.0 x φ 20 - 63mm, ID508mm OD1600mm, 3T | |
| Finished Pipes | |
Round pipe size: Φ20mm ~ Φ63mm * 0.8 mm~ 3.0mm. 15×15mm~60×40mm * 0.8mm~2.5mm(a:b≤2:1) | |
| Machine Parameters | |

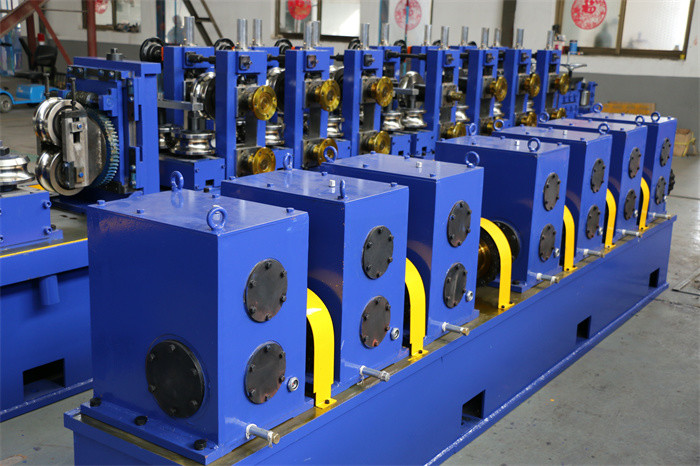

| Double heads Decoiler, double heads hydraulic expansion, air brake Shear & butt welding device, automatic 16-150A Horizontal spiral accumulator, Φ4m, 200m/min feeding Forming & Sizing unit, 160KW DC, 8+6 horizontal rollers, 9+6 vertical rolls Hot friction flying saw, φ500×65×3 saw blade, 26KW Run out table (double sides discharging),2.2KW 250KW HF welder, 1 set Rollers,according to customers pipe sizes Total installation power: 420KW Line speed: 30-100m/min |
ERW Pipe Machines Specification:
| Model | Pipe size | HF welder (KW) | Motor power(KW) | Speed (m/min) |
| Фmm x mm | ||||
| HG16 | Ф(7-20) x (0.2-0.5) | 60 | 22 | 80-140 |
| HG25 | Ф(8-32)x(0.35-1.3) | 100 | 45 | 70-130 |
| HG32 | Ф(15-50) x (0.6-2.0) | 150 | 110 | 60-120 |
| HG50 | Ф(20-63)x(0.8-2.5) | 200 | 160 | 50-100 |
| HG63 | Ф(20-76)x(0.8-3.0) | 250 | 200 | 30-90 |
| HG76 | Ф(25-80) x (1.2-4.0) | 300 | 110x2 | 30-80 |
| HG89 | Ф(32-102)x(1.5-4.5) | 300 | 132 x 2 | 30-80 |
| HG114 | Ф(38-127) x (1.5-4.5) | 300 | 160 x 2 | 30-70 |
| HG125 | Ф(50-165)x(2.0-5.0) | 400 | 185x2 | 20-60 |
| HG165 | Ф(76-165)x(2.0-6.0) | 600 | 200x2 | 15-50 |
|
|
