6 Hi Leveler Servo Cut to Length Line with Edge Trimmer and Dual Stackers

Our company's high-speed servo cutting line for stainless steel plates is very popular in the stainless steel plate processing market. The whole production line has high processing accuracy, fully automatic operation, and high production efficiency. The main units of the entire line include the unwinder anti tension feeding function, the 6Hi leveling machine, (edge cutting machine), film paper laminatng, the 9 roll servo length feeding machine, the servo cutting machine, the double stackers, etc. The length of the sheets is over 300mm, with a maximum length of 3000mm, 4000mm, and 6000mm available. The production speed is 45 sheets/minute x 1m board, and 30 sheets/minute x 2m board.

Stainless steel plates have smooth surface, high plasticity, high toughness, and high mechanical strength, corrosion resistance, and an increasingly wide range of applications. Stainless steel plates are mainly categorized 200 series, 300 series, and 400 series, with higher requirements for cutting process, such as flatness, smoothness, length accuracy, and material uniformity.


Composition:

Characters:
1. In the design and manufacturing of the production line, considering protection of the board surface. Chromium plated rollers, rubber coated rollers, pneumatic aggregates, etc. will all provide good protection for the surface of the board.

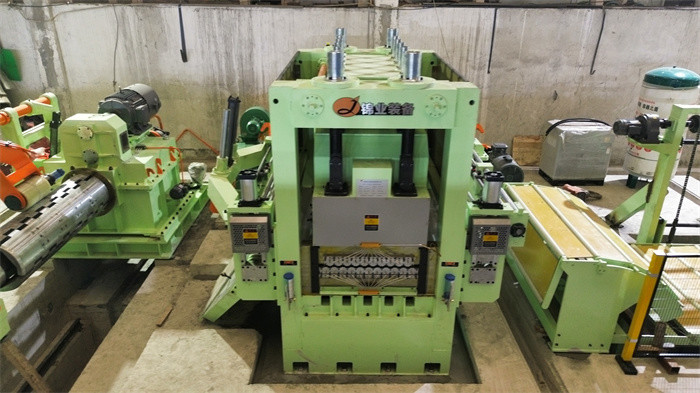

2. Six High leveling machine: The bearing seat of the leveling roller can be synchronously tilted with the adjustment of the curvature of the leveling roller. The contact between the support roller base and the upper and lower crossbeams adopts a spherical contact. While adjusting the support roller, it can be freely aligned to ensure that the support roller and the middle roller are in line contact, which is conducive to protecting the work roller.
3. Length Feeding: equipped with a secondary positioning device (fully closed-loop control), which can effectively avoid the impact of pressing and leveling on material dimensions, making shear dimensions more accurate. It consists of two sets of clamping fixed length rollers, with a five roll finishing structure in the middle, ensuring precise feeding without slipping.
4. Servo shearing machine: driven by servo motor, with fast shearing speed; When cutting boards of different thicknesses, the gap between the scissor blades can be quickly adjusted by a servo motor through the human-machine interface. The four sided blades can be used interchangeably with interchangeable blades to achieve maximum economic benefits. Cutting from bottom to top with burrs pointing upwards can effectively avoid damaging the conveyor belt.
5. Stacking system: The sheet is transported by the conveying belt to the aggregate rack for neat stacking. The lifting table of the stacked steel plates can automatically descend with the increase of the height of the stacked steel plates; When the number of stacked steel plates reaches the set value on the touch screen, the production line will automatically stop. At this time, manual control lower the lifting table, drive the discharge trolley out (or output the roller conveyor), and at the same time, enter the next working cycle on another stacking rack.
6. It can continuously cut multiple length specifications at once without stopping the machine (online cutting).

Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.
