Rotary Shear Fly Cut To Length Line Stainless Steel India 0.3 - 3.5X 1650

Stainless steel sheet has much higher strength and better appearance than plain carbon steel sheet, and requires higher precision stronger cutting to length line which cares SUS sheet surface protection.

Characters:

1.Uncoiler

Active uncoiling with back tension, convenient for tension control and coil return, low noise.

Ultrasonic sensor checks the uncoiling diameter( can freely check if inside rubber sleeve available), the tension can be freely adjusted and slow down while reaching coil tail in automatic mode.

Laser measures the distance, operator set steel coil width on touch screen and load the steel coil onto mandrel, press button to centralize the coil on center line.

Mandrel expansion pressure is compensated in timing to avoid steel coil deviation if pressure release.

2. Paper peeler is controlled by nearby button, uncoiling panel and main panel, with photoelectric sensor to check paper breaking alarm.

3. Good sheet product surface protection arrangement on the machine design and making.

4. 6High Leveling Machine(work rollers, middle rollers and backup roller groups,ensure the leveling work rollers stiffness and evenness, the roller diameter can be smaller and leveling flatness better.

5. The inclination of leveling rollers bearing seats can be adjusted with bending degree of leveling rollers. The contact between backup roller seats and upper & lower beams is spherical surface contact, when the backup rollers are being adjusted, the position can be freely corrected to ensure line contact between backup rollers and middle rollers, good for protecting work rollers. The leveling rollers rotate slower while NC feeding to protect sheet surface.

6. Sheet Length feeder: Twice positioning controlled by fully closed loop controller can avoid the effect of leveling to sheet size, making cutting to length in high precision.

The servo feeder is two pairs of pinch rolls pinch feeding precisely without slipping.

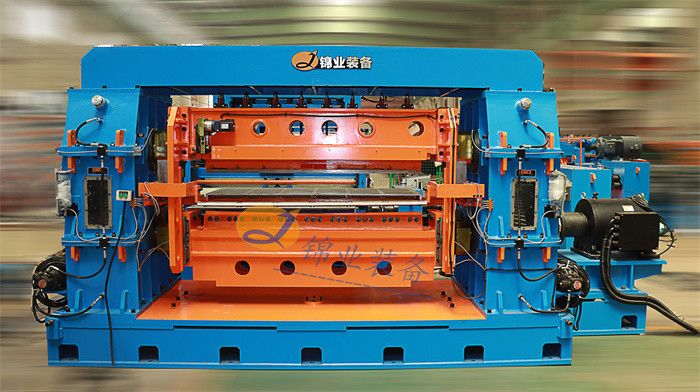

7. Rotary flying shear Continuously cut many lengths of set quantities without stopping the machine.Servo motor controls shearing action, low noise and less piping.

8. Servo adjusting blade gap with memory function can realize fast blade gap adjusting

9. All the welded structural part of the machine will go to tempering to release welding stress thoroughly, this way, the machine manufacture precision will be stable for long time. All big parts are machined by huge machine tool or CNC center to ensure the machining precision. All outsourcing parts take use of internal or domestic famous brands which quality and performance are good.

Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
